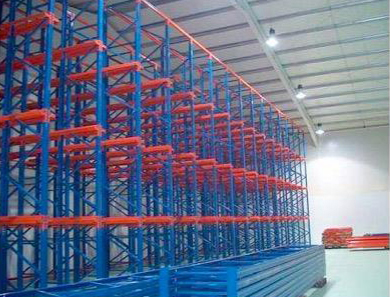

Drive-In/Drive-Thru Pallet Rack

Our drive-in/drive-thru pallet racks are ideal for storing large stocks of relatively few product types. High density system reduces space usage by 35%, compared with selective pallet rack. Meanwhile, it helps optimize space, about 75%, than conventional pallet rack. There are two storage methods available: FILO (first in, last out) and FIFO (first in, first out). FILO is quite suitable for materials with long shelf life like electronic products, office supplies and tobacco, while FIFO is advantageous for materials with an expiration date such as medicine, food and beverage.

• FILO (first in, last out) and FILO (first in, last out) load methods.
• Easy access aisles for forklifts.
• High volumes, low cost, friendly space usage.
• Support arm helps avoid collisions and save larger space to goods.
• Welded pallet rail ensures your safety from forklifts.
• No need of unnecessary aisles for forklifts.
• High density system of drive-in pallet rack greatly increases space utilization.
• Specifical design for your pallets and forklifts.

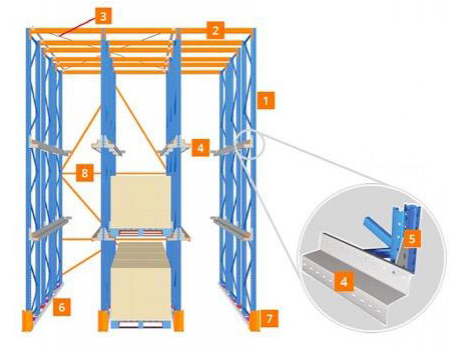

1)Upright Frame
2)Top Beam
3)Top Bracing
4)Pallet Rail
5)Support Arm
6)Guide Rail
7)Upright Protector
8)Back Bracing

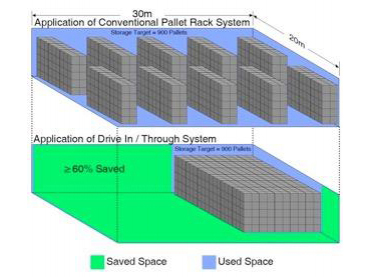

Storage target: 900 pallets
Conventional pallet rack system: whole warehouse space 30x20m2
Drive-in/drive thru pallet rack system: 40% of warehouse space, 14x18m2
Multiple storage modes

Before deciding the ideal layout of pallet racking system, the following considerations even more should be taken into account: 1) floor space and building height 2) placement of building doors, columns and fire equipments.

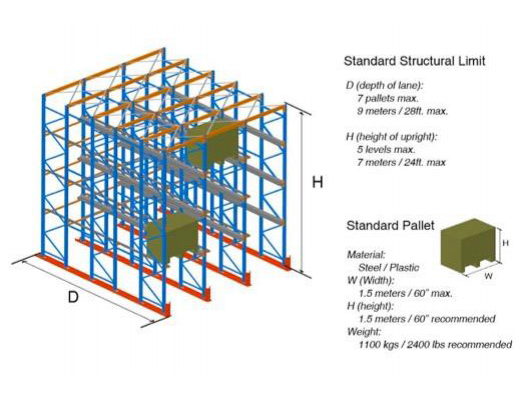

The choice of pallet racking systems is influenced by items to some degree. With the purpose of safe work conditions, the structural limit of drive-in/drive-thru pallet racks should be: the maximum height of upright: 5 levels (7m/24ft); the maximum depth of lane: 7 pallets (9m/28ft); the maximum weight of pallet: 1100kg (2400 lbs).
