Push Back Pallet Rack

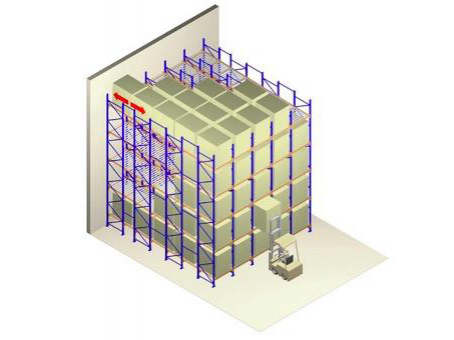

Push back pallet rack provides a combination of high density storage and universal product storage, when product stored in lanes available in 2 to 6 pallets. Put the pallet on the rolling rails and push it forward the back of lane through extra pallets. In the process of unloading, gravity leads pallet to moving forward into the lane, so forklifts never enter the rack avoiding unnecessary damage. This LIFO (last in, first out) system allows high pick-flows. Every lane can be filled from the aisle independently for high-effective management of multi SKUs (Stock Keeping Unit).

• Space optimization can reach 90%, compared with conventional pallet rack.
• Universal product storage with large number of SKUs, convenient for stock rotation.
• Excellent performance of picking, 400% higher than drive-in pallet rack.
• High density storage for easy access to each pick face.
• Ideal for large quantities more than 5 SKUs (the more the product, the deeper the lane).
• The number of pallets can surpass over 100% than conventional pallet rack with more rack structures.

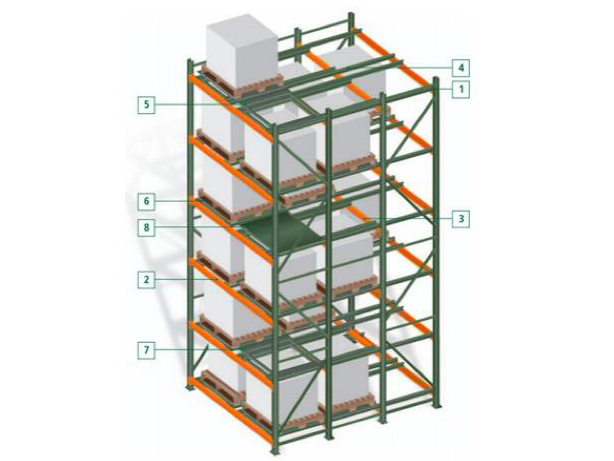

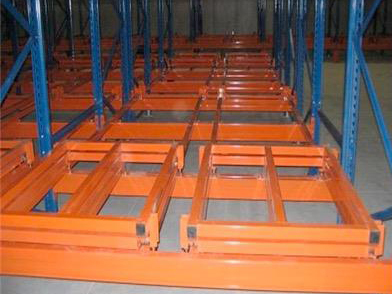

upright frames, beams, inclined rails, carts...
