Medium Duty Cantilever Rack

Medium Duty Cantilever Rack

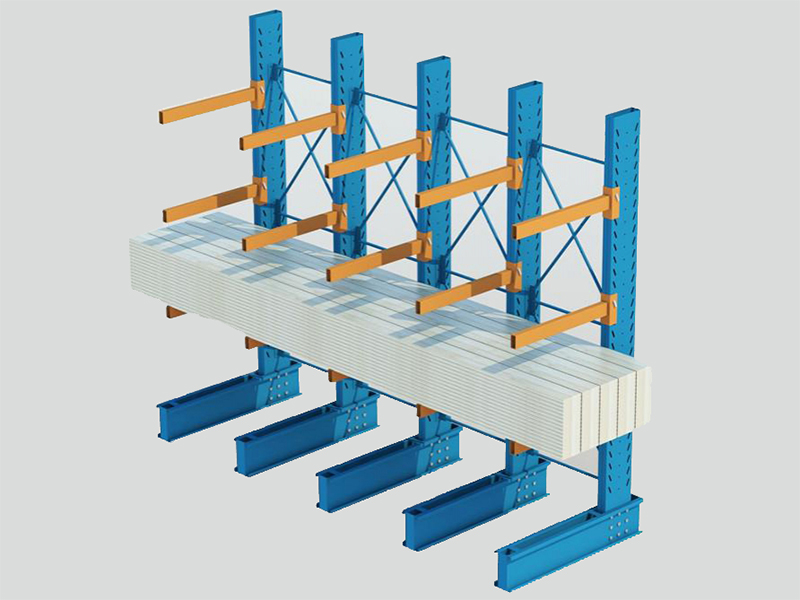

Our medium duty cantilever racks are ideal for long items such as pipes and profiles, available as either single or double sided units. Made of hot-rolled materials, columns are connected with arms by bolt, bases by screw. The adjustable arms are capable of bearing 500-1000kg. Two types of bases (single or double sided) can fit your specific requirements. Now it is widely applied in machinery manufacturing industries and construction markets.

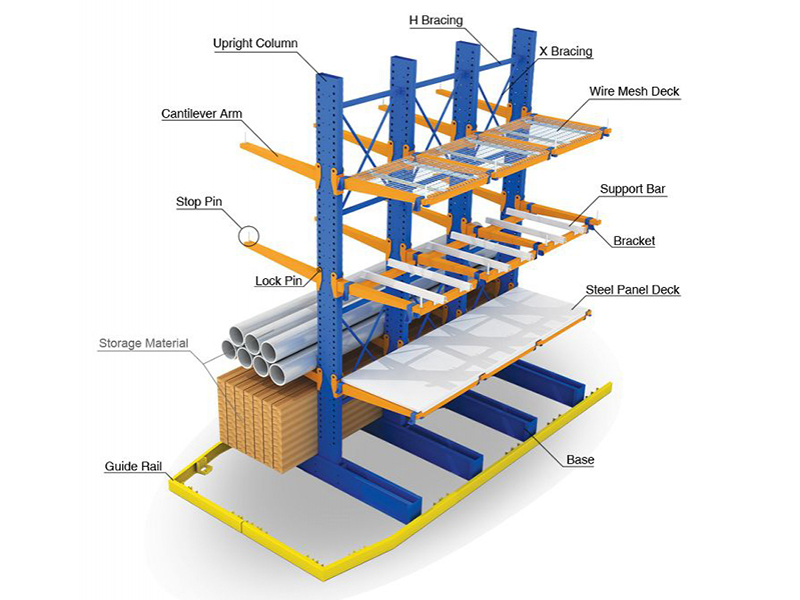

Components:
Heavy Duty Cantilever Rack

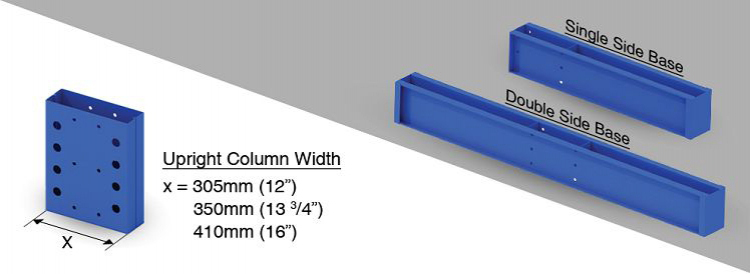

1. Column and base

Our light duty cantilever racks are made of high quality steel. The column width of this type can be 305mm, 350mm, 410mm. We take advantage of our own special technique to control the hole pitch error within 0.1mm/10m.

The base possesses great strength rendered by sturdy steel. Meanwhile, it is convenient for carrying and assembling. Our company also offers customized support according to the load type.

Heavy Duty Cantilever Rack

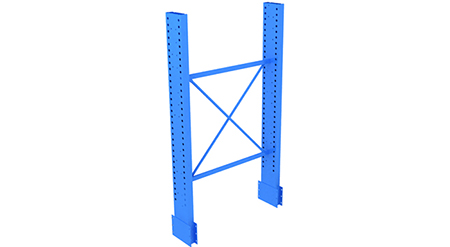

2. H bracing
With the purpose of added stability, H bracing is joined to two adjacent columns via screw to creat a steady structure.

3. Arm
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack

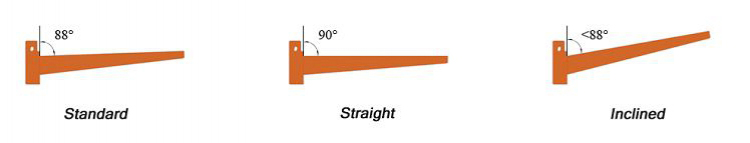

As the core of light duty cantilever rack, C/C column arms are provided by our company. According to your requirements, customized arms can be attached to different positions of column. There are three types for your chocie: standard, straight, or inclined.

Features:
Heavy Duty Cantilever Rack
  • Easy to load and unload.
  • Flexible product storage for varying length.
  • Strong bearing capcity and seismic resistance.
  • Continuous horizontal space for storing long items.
  • Special design as your request.
Examples:
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
  • Heavy Duty Cantilever Rack
