Rivet Shelving

  • Rivet Shelving
  • Rivet Shelving

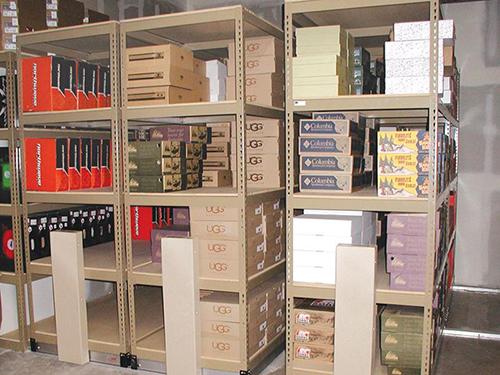

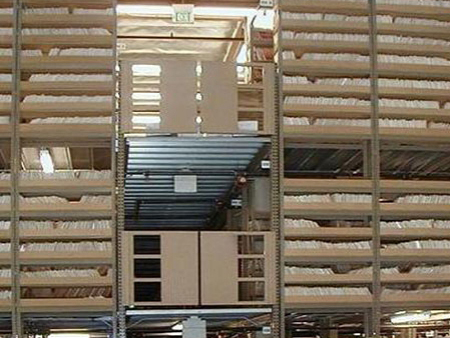

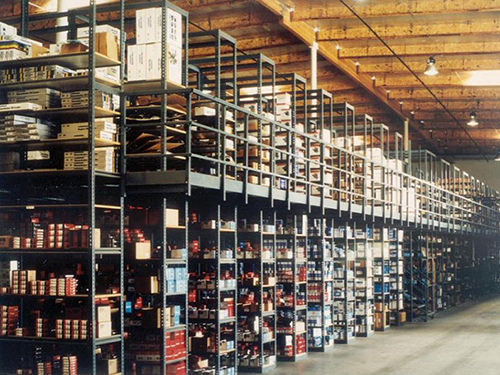

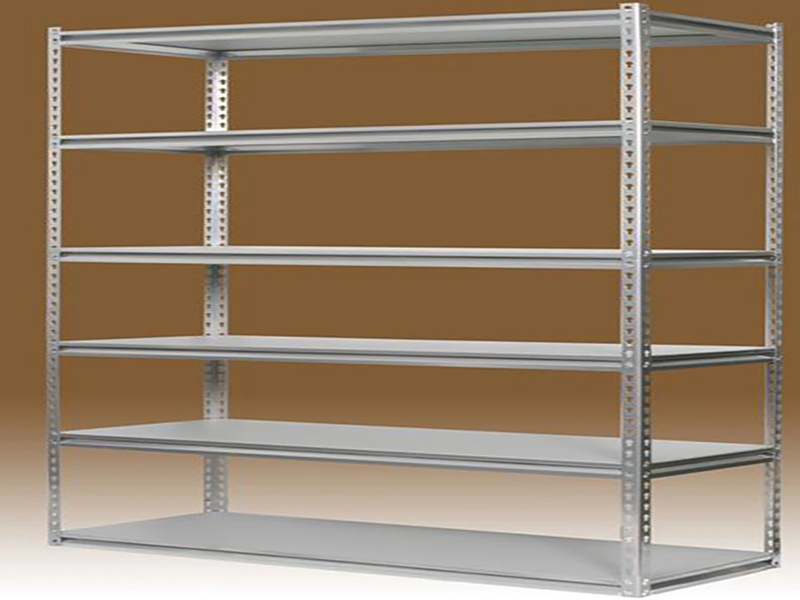

Made of reinforced steel. our rivet steel has 6 adjustable wiremesh decks per unit, optimizing storage space for various loads. The special design makes it easy to install with short time. There are two types of columns available: standard or customized (designed for loads). This type of rivet shelving has got the permit from NSF(National Science Foundation) for dry food storage. Besides, it is an economical solution of storing light-weight and small-size loads in families, offices or warehouses.

Primary Member
  • Reinforced steel structure
  • Wiremesh decking
  • Slotted steel column
  • Durable black powder coating
  • Load: per level 1000 pounds, with uniform load
  • Easy to assemble and dismount vertically or horizontally
  • NSF certifiaction for dry food storage

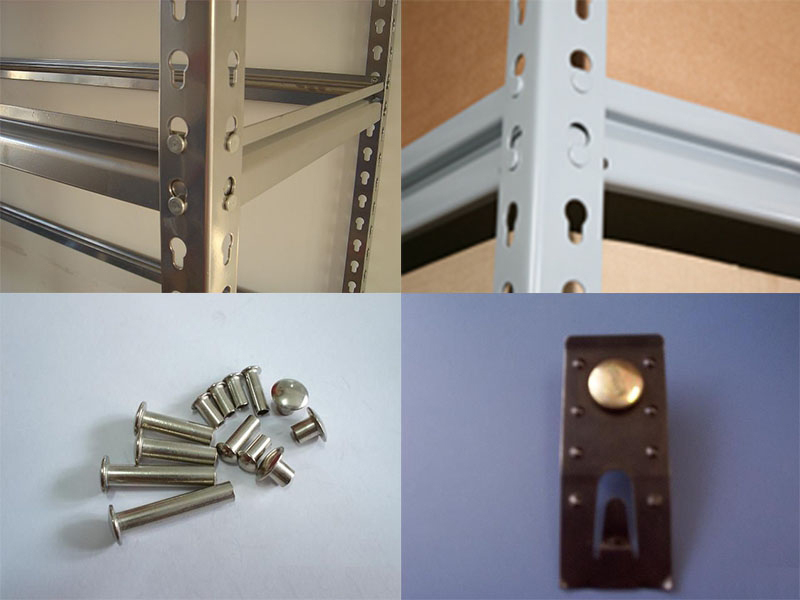

There are three types of rivet shelving as following:
  • L type (16GA/14GA), any size available;
  • Z type (16GA/14GA), longer for the edge of shelf panels;
  • C type (16GA/14GA), for added stablity and bearing-load capacity.

According to different types of rivet shelvings, materials usually are chipboards, steel panels or wiremesh decks.

Standard specifications:
  • Configuration: angle steel, steel panel, wire mesh, T type rivet beam
  • Height: take advantage of 50.8 or 38 mm to adjust height easily
  • Materal: Q235 (cold-rolled steel)
  • Surface treatment: powder coating
  • Color: blue RAL 5015, orange RAL 2004, grey 7047, yellow RAL 1018
  • Load: 200kg-300kg per level (customized)
  • Standard demensions: L1500/1800/2000*W600*H1500/1800/2000mm, L36“*W18”*H72”mm,

Special design for other customized shelving!
