Rack Supported Mezzanine

  • Rack Supported Mezzanine
  • Rack Supported Mezzanine

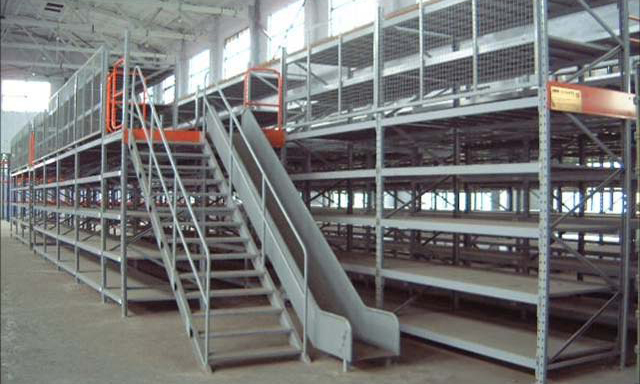

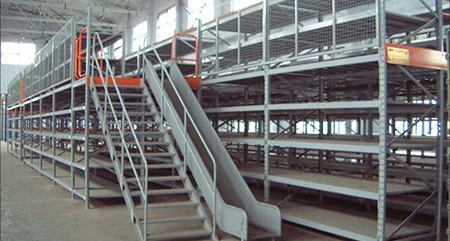

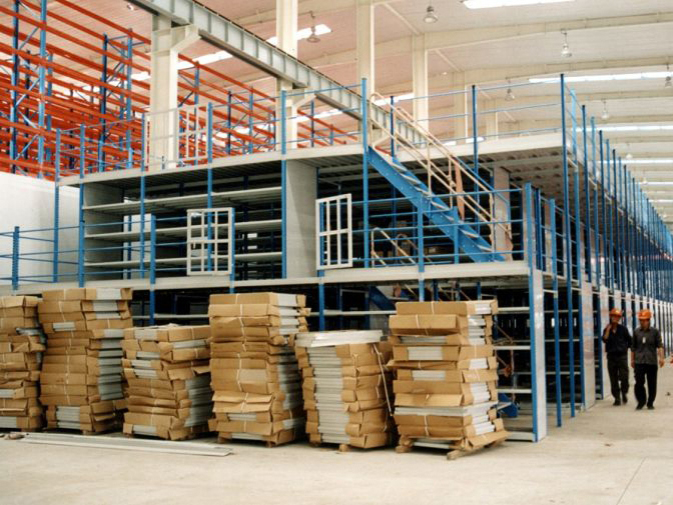

Rack supported mezzanine is an economical solution to utilize space for the loads packaged by carton or box. Take full advantage of the height of the building can double or triple the surface area, compared with traditional expansion. In this storage system, slides and conveyers can be good lifts to carry goods from the upper level to the ground level safely and conveniently.

Features:
  • Low capital cost.
  • Convenient loading and unloading for Labor.
  • Space optimization: multiple surface space, typically 300-1000kg / m2.
  • Load-bearing capacity:
    500kg (the ground Level), incorporated with hand trolley or manual pallet jack;
    300kg (the 2nd or 3rd level), incorporated with hand trolley.
  • Handling equipments: platform, lifts, forklifts, conveyer.
  • Added facilities such as lighting support or fire protection.
  • Easy to assemble. Our professional team offers relevant services.
Components:

The rack supported mezzanine system is mainly composed of column, beam, floor panel and staircase, all connected via screw.

  • Rack Supported Mezzanine

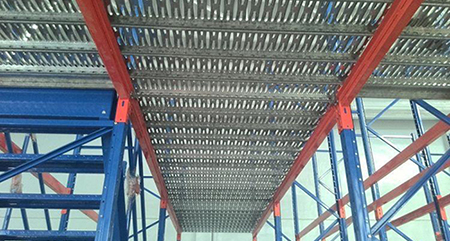

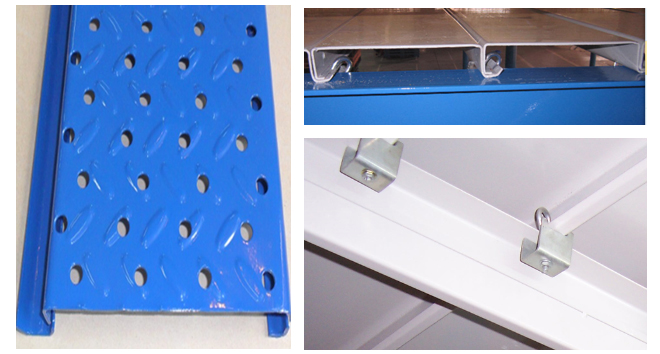

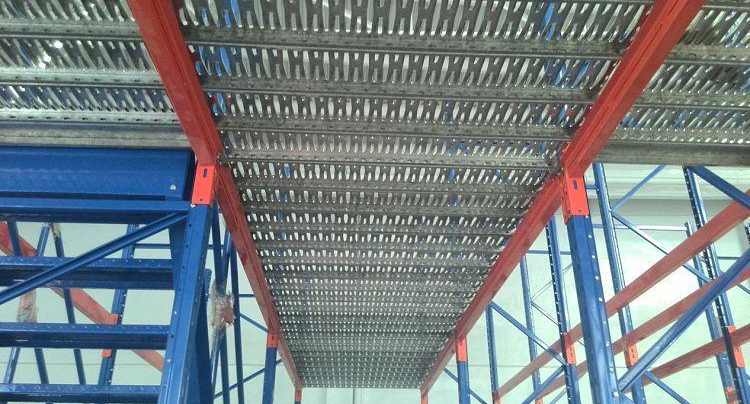

    1. Floor panelAs an essential element of steel platform and mezzanine, our cold-rolled floor panel is connected with beam by an interlocking structure. Here are two main types of floor panels.
  • Rack Supported Mezzanine
    2. InterlockingRelying on considerable experience, we design a special style to make assembling easier. The safety pin underneath the floor panel provide stability, added holes available for fire protection.
  • Rack Supported Mezzanine
    3. RolledOur company can provide anti-rust and fire-retardant floor panels, completely satisfying strict national requirements. Meanwhile, our floor can bear heavy weigth, easy to dismount.
  • Rack Supported Mezzanine

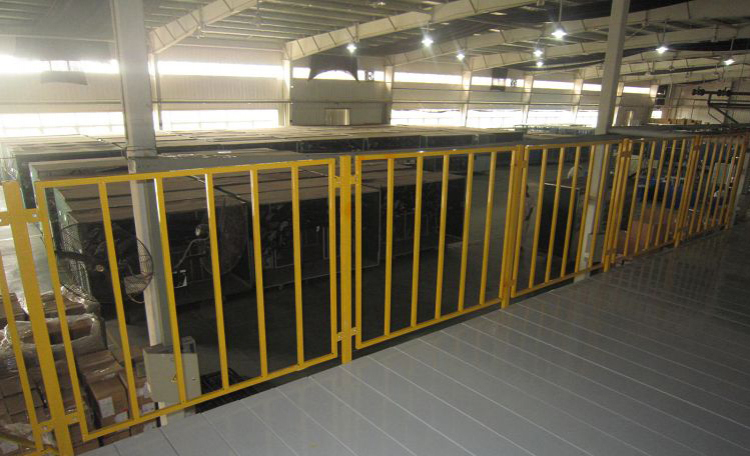

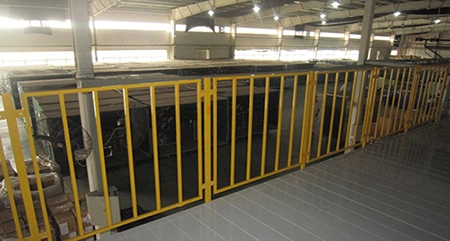

    4. HandrailThis is an essential element for open steel platform or the upper level. The steel platform needs round-tube handrails. Besides, the gate can open for convenient loading.
  • Rack Supported Mezzanine

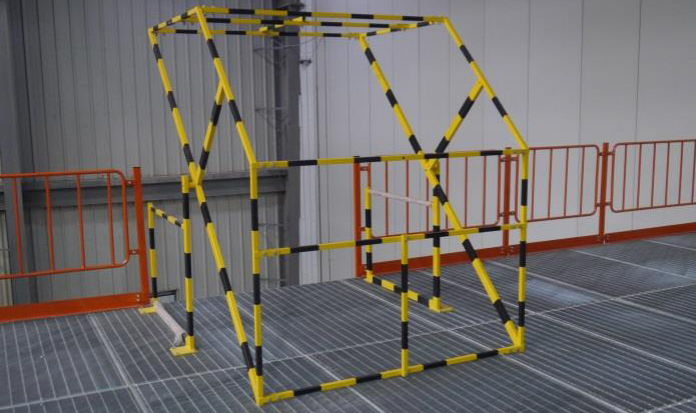

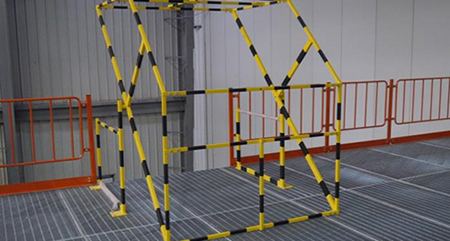

    5. Pallet gateWorkers are always careful of loading and unloading in case of an unexpected fall. So we offer the pallet gate to ensure the maximum safety of operators. Diverse styles for your handling equipment, such as up and over pallet gate.
